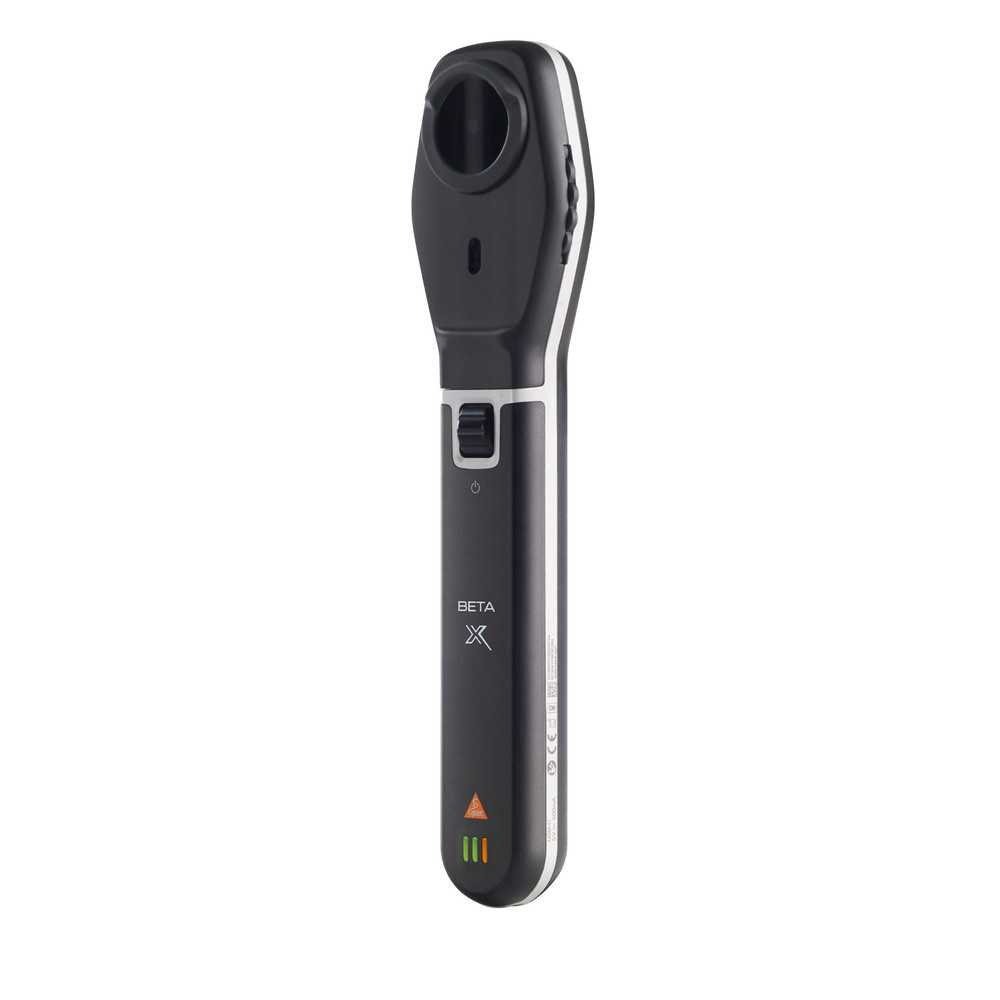

HEINE BETA X Ophthalmoscope

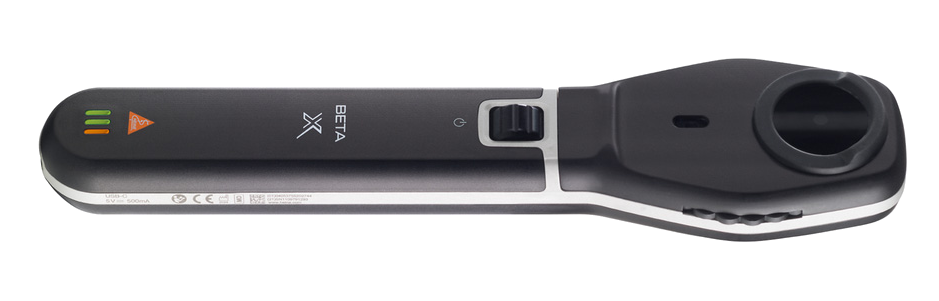

HEINE BETA X direct ophthalmoscope

The comprehensive functions and improved usability make the HEINE BETA X Ophthalmoscope a versatile instrument suitable for a wide range of examinations and for all users, including ophthalmologists, optometrists, general practitioners, paediatricians, and other healthcare professionals.

Crisp, clear views of the fundus with the AOS+ optical system and LED-HQ

• The AOS+ Aspherical Optical System is even more effective in reducing corneal and iris reflections through the optimised separation of illumination and observation paths
• Fewer reflections on the iris thanks to the crescent-shaped illumination: Particularly relevant for children and small pupils or non-dilated patients’ examination
• The U-shaped mirror enables an even more comprehensive view of the fundus without vignetting effect
• LED-HQ for homogeneous, bright illumination with true colour rendering for high contrast and extremely detailed views
• Superior refractive error compensation – select the precise focus adjustment in 74 single dioptre steps from -36D to +38D
• Ideal instrument for the red reflex test (Brückner test) and eye examination of children, elderly or immobile patients

Exclusive: HEINE focusCONTROL

• Easily switch focus between the anterior (C: cornea) and posterior segment (F: fundus) of the eye
• Enables optimised sharp and bright image of the different ophthalmoscope apertures on the anterior segment or the fundus
• Excellent examination of the anterior ocular media possible under magnification and using slit illumination, for example corneal examination after foreign body exposure and trauma
• Simplified detection of erosions and oedematous areas
• Improved assessment of the anterior segment of the eye, including the iris and the lens

Swivel-in polarisation filter

• Depending on examination requirements and purpose:
• With polarisation: Corneal reflexes and stray light reduction
• Without polarisation: Wall reflex (macular reflex) and retinal arteriolar light reflex (copper & silver wiring) clearly visible

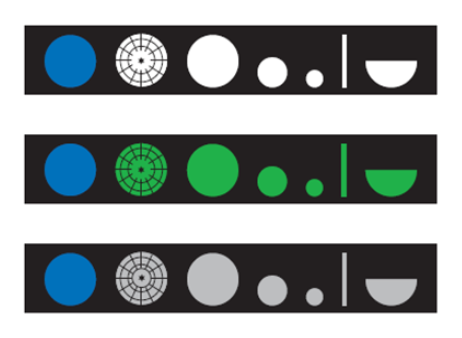

• 7 different apertures, including pinhole and hemispot, that can also be used with red-free and polarisation filter

Durable, lightweight and ergonomic design

• Solid, integrated aluminium frame in which optical components are embedded
• Optical system is sealed to guard against dust
• Housing is thermo-moulded out of a special high-impact material blend optimised for hygienic reprocessing
• smoothSURFACE and recessed USB-C connection
• Scratch-resistant viewing window made of tempered glass
• Lightweight and precisely balanced for excellent ergonomics and secure handling
• 5 years guarantee

Microprocessor controlled smart illumination control wheel

• Simple, one-thumb operation
• Turn wheel quickly for large changes in illumination intensity
• Turn wheel slowly for precise fine tuning of illumination intensity
• Continuous dimmability between 1 and 100%
• Push wheel for on/off
• Always turns on to the last used illumination intensity setting

Smart power source options

• Charge status indicator
• Automatic switch-off function
• Rechargeable with USB-C or charging station

Complete your diagnostic set with the HEINE BETA X Otoscope
