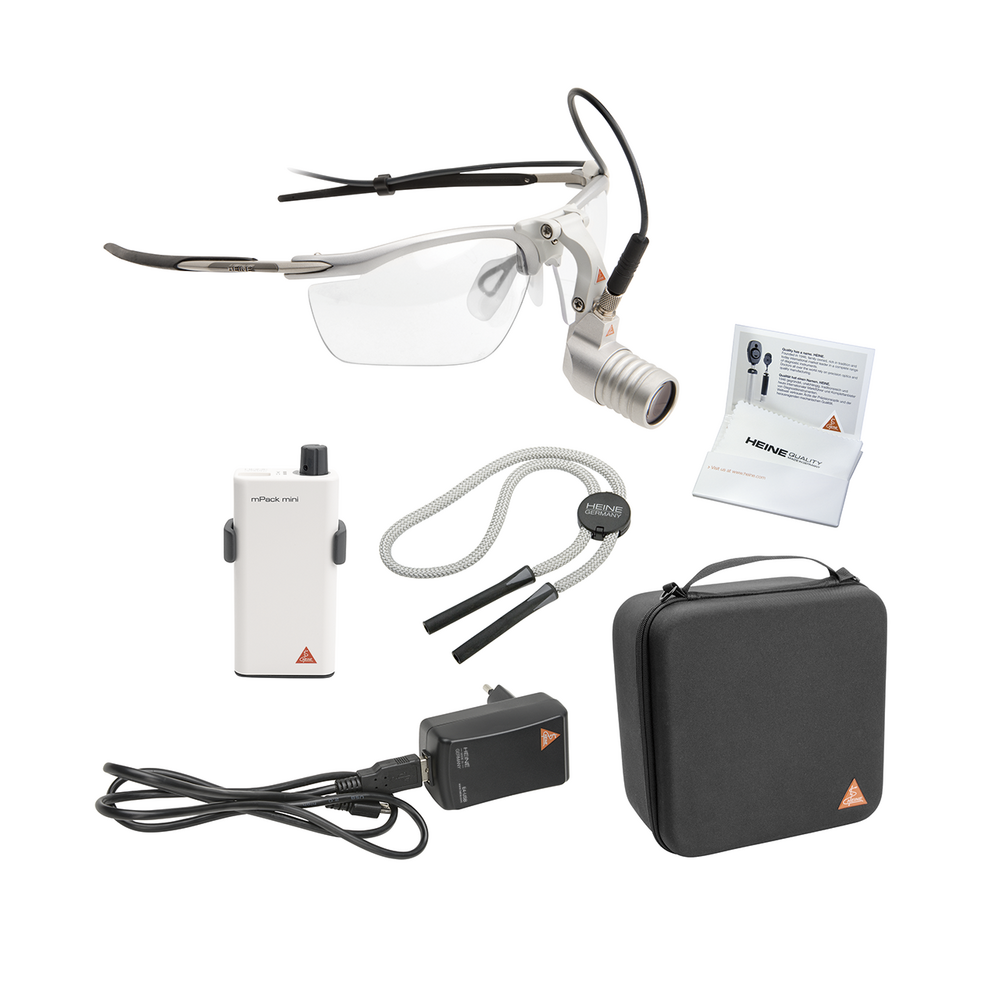

HEINE MicroLight2 LED headlight

HEINE MicroLight2 Compact LED-HQ headlight

• There’s LED. And there’s LEDHQ. HEINE has set a new standard which maintains that only the best is good enough, from the selection of materials to processing, from light intensity to dimmability, and from thermal management to a colour rendering index as high as possible. That’s what we call LED in HEINE quality – or LED-HQ
• Compact and lightweight. Ensures perfect comfort
• Aluminium housing. Exclusive aluminium housing protects the optics against dust and moisture to ensure an extraordinary long lifespan and optimal thermal management
• Coaxial illumination. Compact coaxial design ensures a completely shadowfree image and allows for excellent illumination of difficult to see areas
• Homogeneity. An absolutely bright light spot that is uniform from edge-toedge for the perfect illumination in all examination situations
• Replaceable connecting cord with high-quality splashproof threaded connector with a length of 1.5 m. Connects the MicroLight2 with the mPack mini
• Incl. coloured attachment clips for personalisation. To fixate the cable on the S-FRAME and to identify your headlight

Technical specification MicroLight2 LED

• Illumination typ. 55,000 lux*
• Colour temperature typ. 4,000 kelvin
• LED operating life typ. 50,000 hours
• Weight 80 g together with S-FRAME, 190 g together with lightweight headband
• Angle of declination stepless and individually adjustable for every examination
• Operating time typ. 9 h with mPack mini (in continuous operation at full power typ. 4 hours)

* Measured at a working distance of 180 mm from the light emission to the object.

HEINE S-FRAME

• Maximum comfort with a modern, ergonomic design.
• Malleable temples and nose pad. Can be customized to fit any face perfectly.
• Innovative materials – Carbon-Kynetium reduces weight (80 g together with MicroLight 2).
• Tough polycarbonate protective lenses.

HEINE mPack mini

Compact and lightweight power source for LoupeLight 2 / MicroLight 2

• Freedom from cables that tie the user to desk, wall or static power supplies.
• Operating time typ. 9 hours. In continuous operation at full power typ. 4 hours.
• Charging time typ. 4 hours.
• Charge status indicator. Display of remaining battery power with three LEDs. The flashing of the last LED indicates that immediate charging is required. During charging the LEDs light up one after the other.
• Stepless light intensity control. Optimum brightness setting between 100 % and 3 % reduces reflexes.
• USB cord with E4-USB Medical approved plug-in power supply.
• The integrated galvanic separation module protects the battery and the user against the consequences of defective power supplies, thus preventing the possibility of the full mains voltage flowing directly to the housing. We recommend the use of a medical approved plug-in power supply.
• Simple cleaning. Closed housing, no seams at the sides, few edges.
• Compact and lightweight. With a weight of just 81 g and dimensions of 44 x 23 x 101 mm
• the power source can be easily stowed.
• mPack mini Belt Clip. Pouch to easily secure the power source to belt or clothing.
• Li-ion technology. No "memory effect", without worrying about charge level or battery condition.
